Computer Quilting Fabric Cutting Machine
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
| ब्रांड नाम: | YUTENG |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 |
|---|
|
विस्तार जानकारी |
|||
| वज़न: | 650 किग्रा | मुख्य घटक: | पीएलसी, मोटर |
|---|---|---|---|
| टच स्क्रीन आकार: | 7 " | अधिकतम एक्स आयाम: | 2300 मिमी |
| अधिकतम Y आयाम: | 300 मिमी | बिजली की आपूर्ति: | 380V/50Hz, 220V/60Hz |
| मशीन आयाम: | 3700मिमी*1100मिमी*1850मिमी | परिचालन वायु दबाव: | 0.4 ~ 0.8 एमपीए |
| द्रव्य का गाढ़ापन: | 3-80 मिमी | कटिंग गति: | 10 मीटर/मिनट |
| शक्ति: | 2.6 किलोवाट | एज ट्रिम: | हाँ |
| स्लिटर्स: | हाँ | डिस्चार्ज विधि: | कन्वेयर बेल्ट यांत्रिक |
| फ़ीड सिस्टम: | विद्युत नियंत्रण | ||
| प्रमुखता देना: | computer quilting fabric cutter,computerized cutting machine for quilting,fabric cutting machine with warranty |
||
उत्पाद विवरण

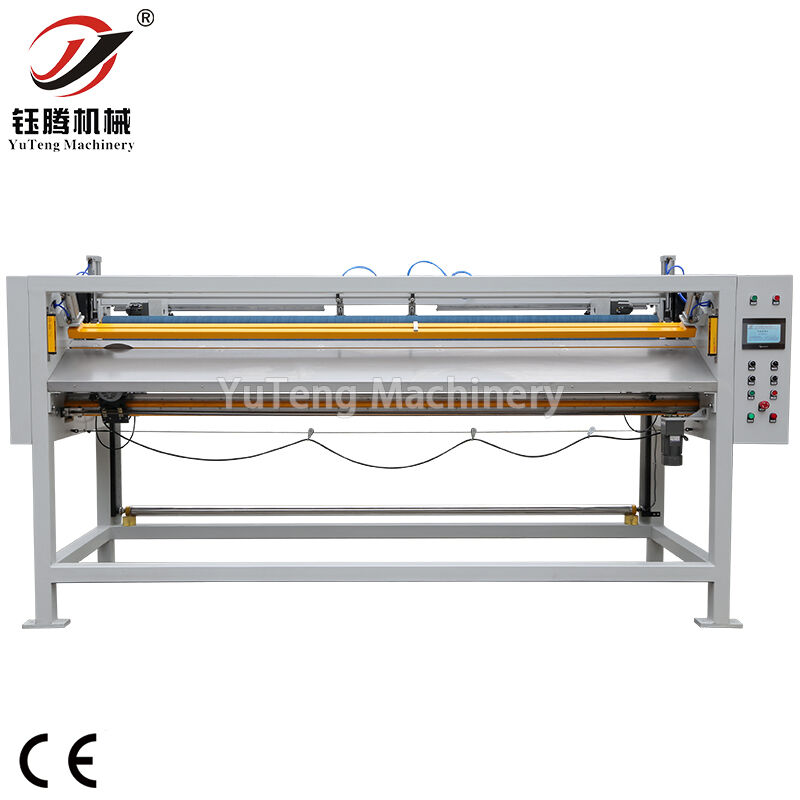

Computer Quilting Fabric Cutting Machine
Product Features
- 7" touch screen for easy operation
- Hidden slitting blades for convenience and safety
- Electric controls for precise length and width cross-cutting
- Feed-in top with article points for even pressure distribution
- Y-dimension encoder for accurate length counting
- Conveyor belt mechanical discharge for efficient material handling
Purpose
This machine is designed for crosscutting, slitting, and edge trimming quilted fabric. It can operate in tandem with quilting machines and rolling devices, or function independently.
Technical Specifications
| Specification | Value |
|---|---|
| Max. X Dimension | 2300mm |
| Max. Y Dimension | 300mm |
| Power Supply | 380V/50HZ or 220V/60HZ |
| Machine Dimensions (L×W×H) | 3700mm × 1100mm × 1850mm |
| Weight | 1300kg |
| Operating Air Pressure | 0.4~0.8Mpa |
| Material Thickness | 3-80mm |
| Speed | 10 M/Min |
| Power | 2.6KW |

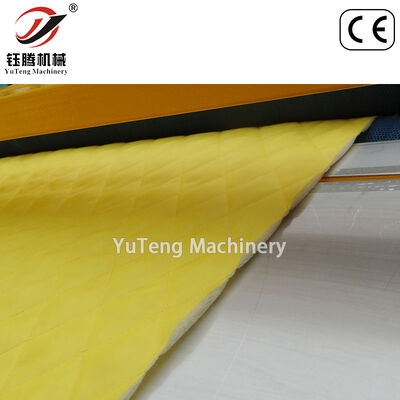

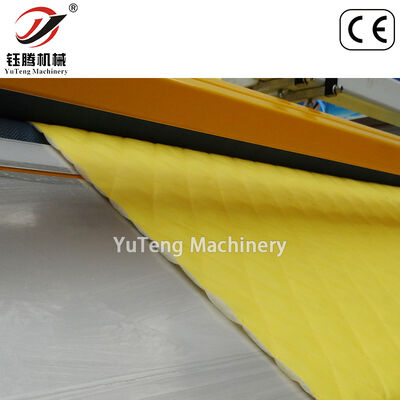

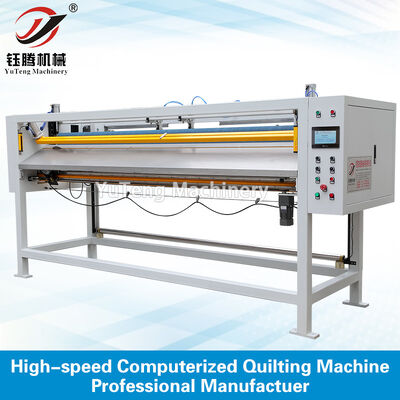

Product Images
Certifications
Company Information
Ordering Information
Delivery Time: Within 35 days upon receipt of 30% deposit
Payment Terms: T/T 30% deposit in advance, 70% balance before shipment
Delivery Terms: FOB, CIF, CFR, etc.
After-sale Service: Comprehensive support with one-year warranty
Customization: Available to meet specific client requirements
